LVAC distribution with cable

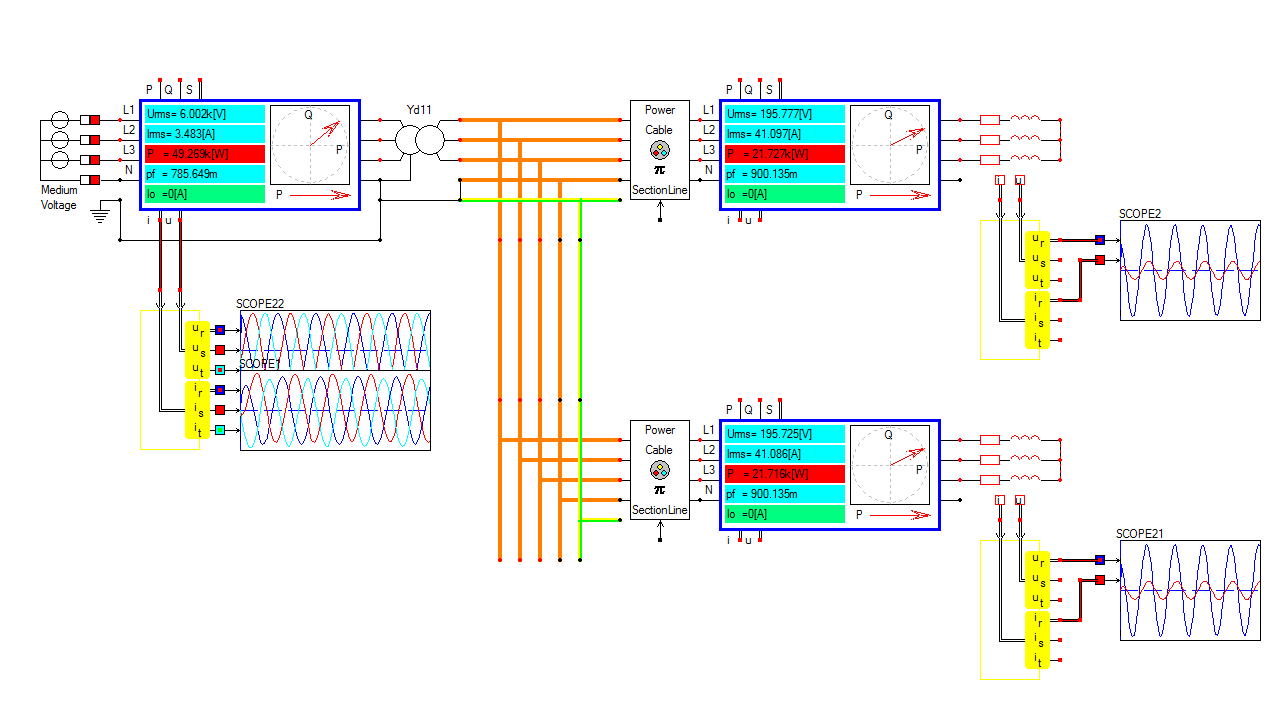

The MVAC voltage of 10kV is transofrmed into a LVAC voltage of 400 volts and dsitributed via two cables of 1 kilometer each.

The cable is a modeled as a pi section model and includes cable resistance and inductance as well as a distributed capacitor.
