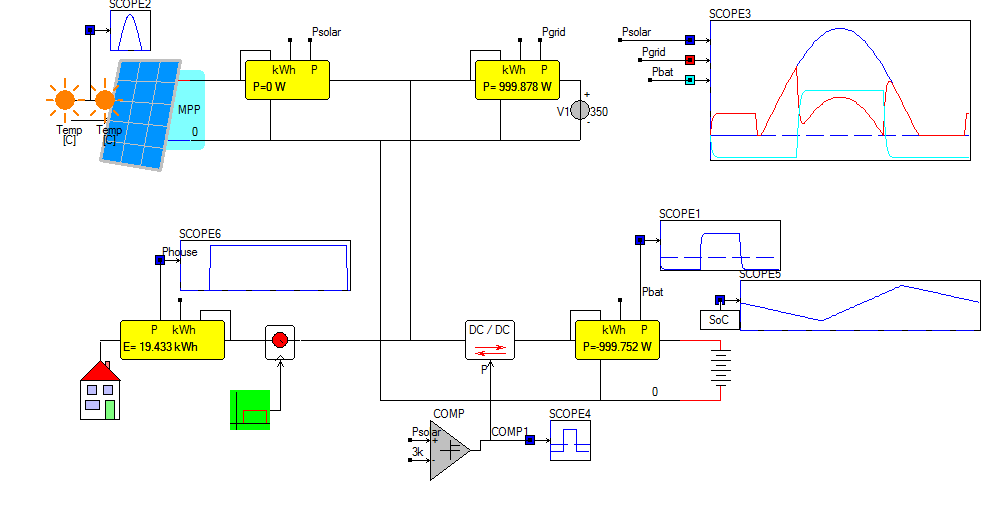

Solar storage day profile

The solar module feeds the house and enenrgy is stored in the battery when the solar power exceeds 3kW.

The load of the house is 1kW and is switched on between 15k and 85k seconds.

The solar insolation is a typical daily curve, with maximum power delivery during 12:00 o'clock.

Whenever the amount of solar power exceeds 3kW, 1kW of power is stored into the battery. If solar power is below 3kW, 1 kw of power is delivered from the battery to the DC grid.

The remaining power is delivered into the DC grid
