Buck-Boost Converter

CASPOC Schematic

Components

Vin = 48V
Vout can be higher or lower than the input voltage
The Inductor L11=266uH with a series resistor 100m
The Capacitor C1=100n with a series resisgtor of 100m
Load resistor R1=1ohm


The output voltage can be Boosted by increasing the on time of the Mosfet. duty cycle can be set to 0.7
The output voltage can be Stepdown/Buck by decreasing the on time of the Mosfet. duty cycle can be set to 0.3

Questions and remarks

It is assumed :
Buck converter operates in the steady state
Buck converter operates in continuous model

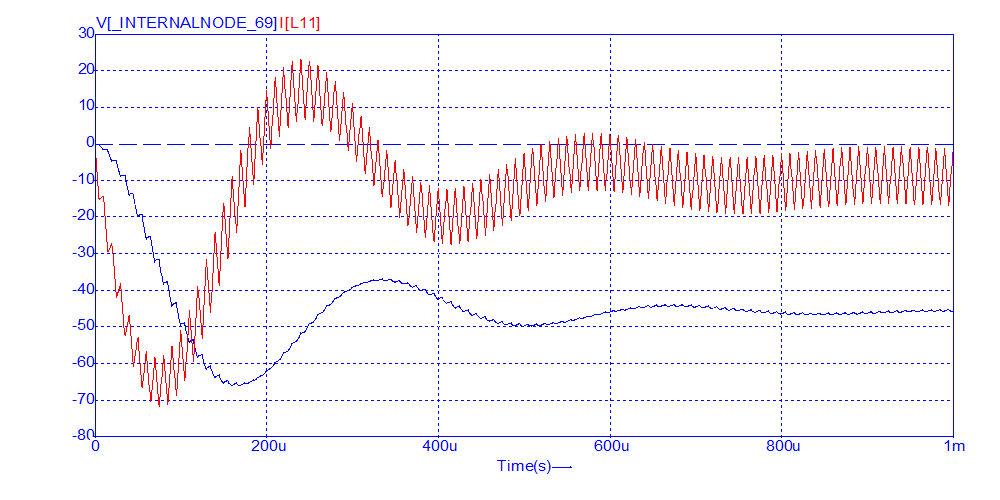

SCOPE 1:
The output voltage on the Buck-Boost Converter is reversed. we measure negative violtage
Dark blue gragh ---> represents the Voltage output
Red gragh ---> current measurement across the Inductor

Changing the value of inductor L1=100uH the time taken by the capacitor to reach its max voltage is slower.
Changing the value of Capacitor affects the ripple voltage

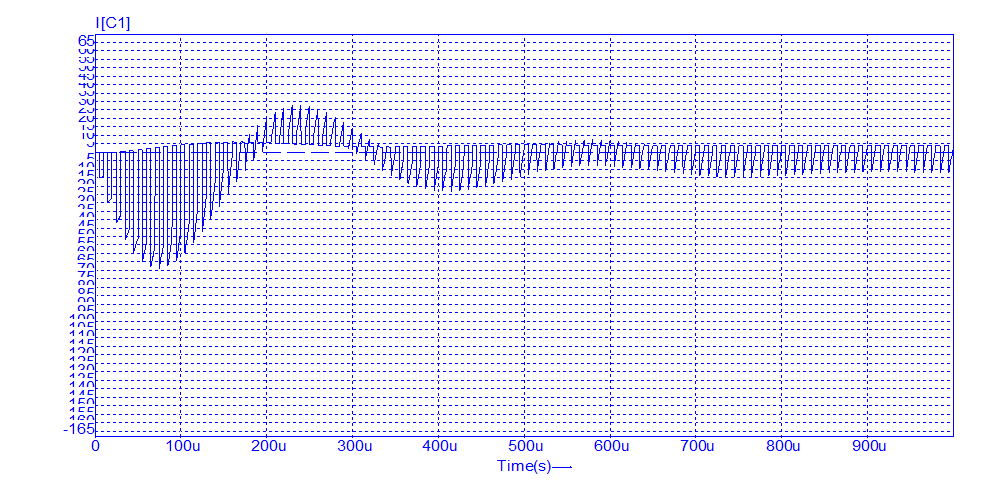

SCOPE 2:
Represents the current across the capacitor

• --- Trace[1]:Voltage at (_internalnode_69)
• --- Trace[2]:Current through (l11)

• --- Trace[1]:Current through (c1)

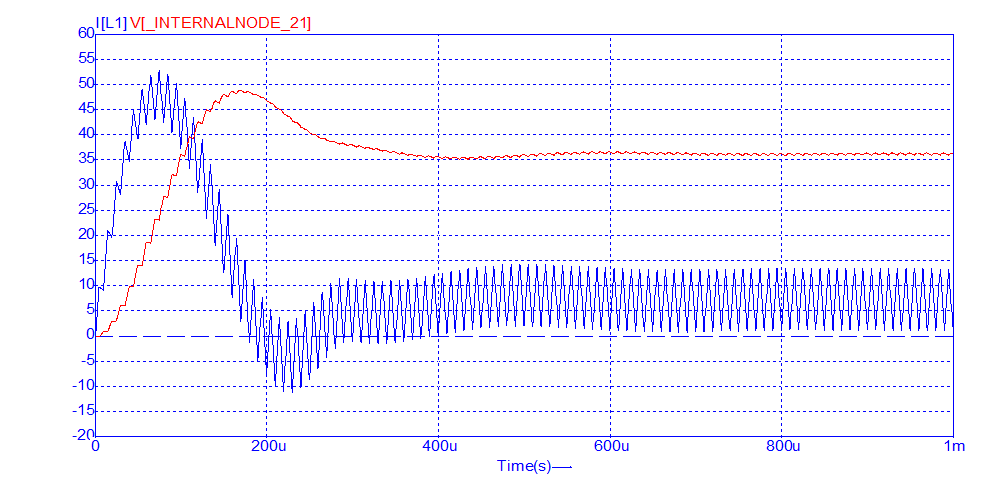

• --- Trace[1]:Current through (l1)
• --- Trace[2]:Voltage at (_internalnode_21)

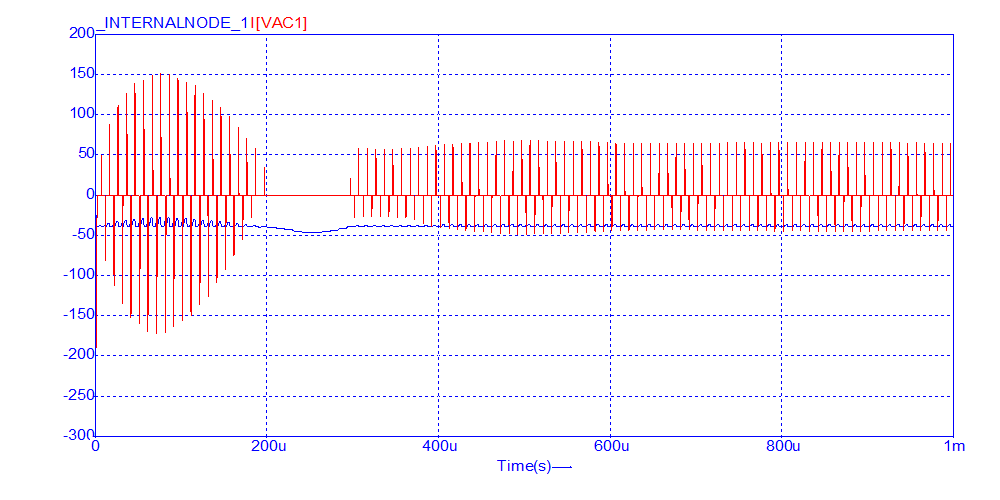

• --- Trace[1]:Output at (_internalnode_1)
• --- Trace[2]:Current through (vac1)
